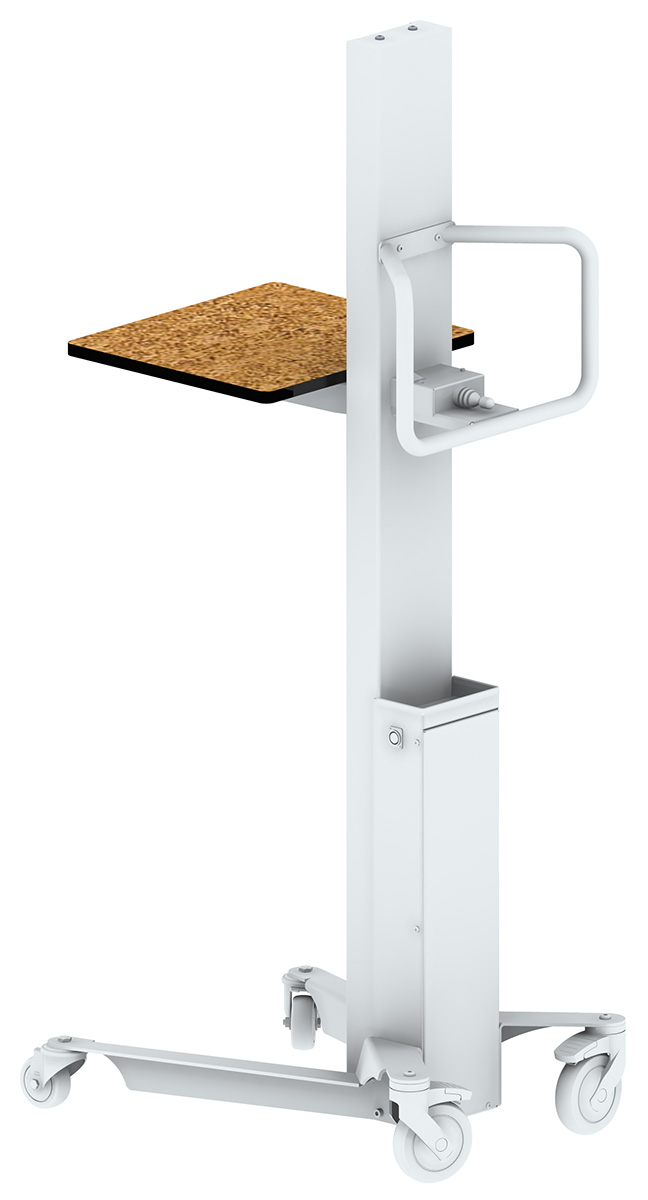

HE-LP 100

Mobile lifting devices with electromotive drive (battery) for energy-independent use with containers up to 100 kg

The most important facts in brief:

  • Suitable for the transport of small load carriers.
  • Load receptacle with an MDF wood panel.
  • Four steering rollers, of which two with brakes.
  • Operate with a hand lever.
  • Useful height: 1,250 and 1,700 mm
  • Special load holders possible (prongs, mandrel).
  • LED load display
  • Low-maintenance and trouble-free operation thanks to high quality, robust components.
  • 230V charging device included with delivery.

Technical specifications

Device type Load capacity
(in kg)
Platform (in mm)
BL
Platform (in mm)
LL
Loading height
(in mm)
Total height
(in mm)
Lifting
(in mm)
Mobile
available
HE-LP 100 100 450 400 150 1.650 1.250 check
HE-LP 100 100 450 400 150 2.050 1.700 check

Lackierung: RAL 7035

Fields of application

  • Production and stock
  • Pharmaceutical industry
  • Food industry
  • Vehicle industry

Product highlights

  • Mobile by means of four steering castors, two of them with brakes
  • Energy-independent with battery
  • Low tare weight
